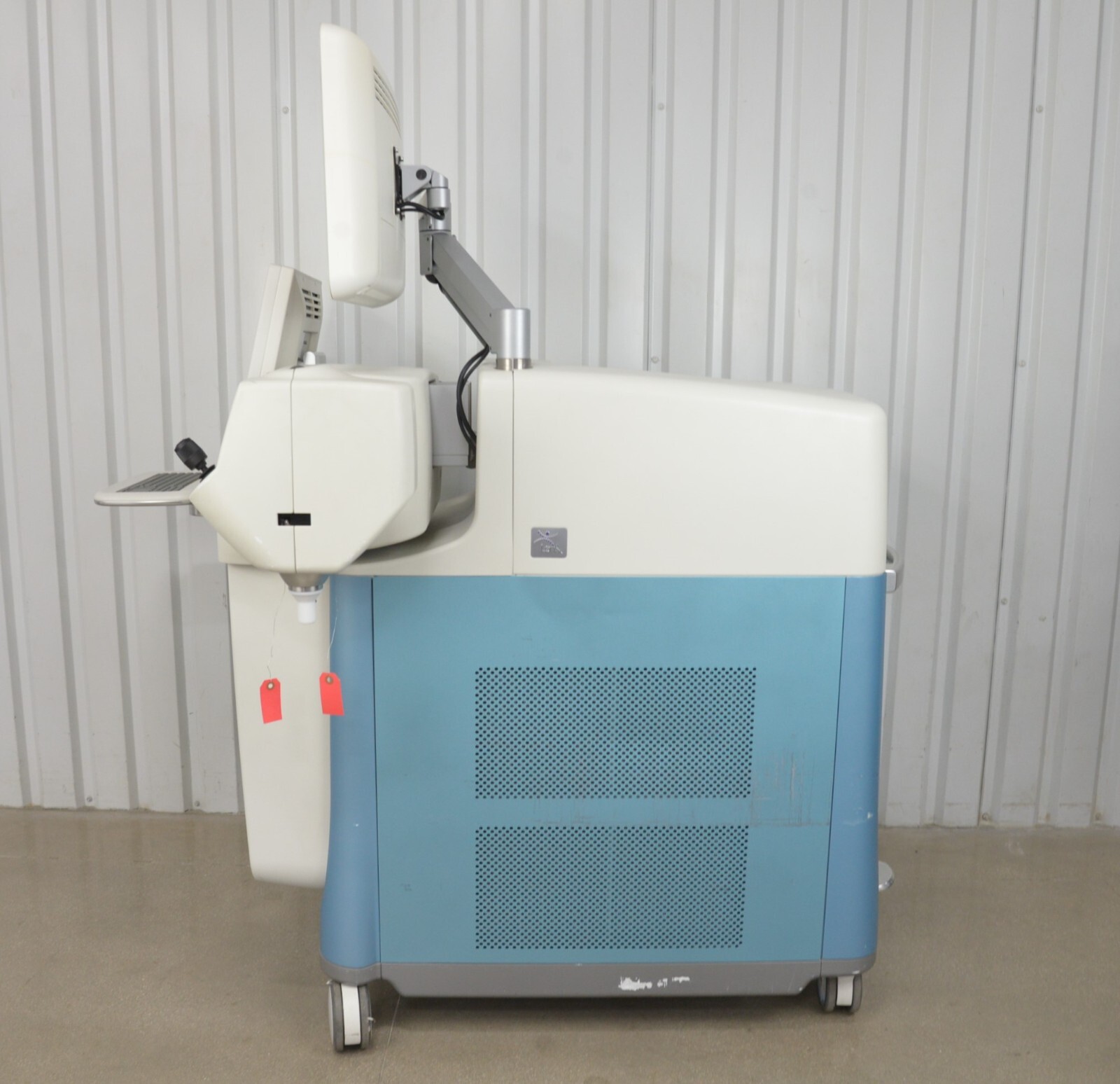

Alcon LenSx Laser System

Alcon LenSx Laser System

• The device has three levels and hosts a power supply, computer, laser source and spectrometer interferometer.
• This femto-laser has been designed to be used in medical environments and conforms to United States and international standards relating to electromagnetic emissions for medical devices.
• The laser beam and all collateral radiations are fully contained inside the console. Other parts of the system include a touchscreen, emission system and video microscope.

Alcon LenSx Laser System

Specifications

• Size: Console footprint 60.9cm (W) x 76.2cm (L) x 121.9cm (H)
• Size: Beam delivery device 20.3cm (W) x 58.4cm (L) x 50.8cm (H) Weight:478.54kg
• Amperage: 10A
• Central Laser Wavelength: 1030 nm (+- 5 nm)
• Frequency (Hz): 60Hz
• Laser Pulse Width : 600 – 800 fs (+- 50 fs)
• Maximum Pulse Energy : 15 μJ (± 1.5 μJ)
• Power Supply Voltage: 120VAC
• Weight: 479 kg
• Dimensions: 76 x 61 x 122 cm (Dx W x H)

The Alcon LenSx® Laser System is a state-of-the-art femtosecond laser platform designed to elevate the precision and consistency of cataract surgery. Engineered with advanced imaging and computer-guided control, this bladeless technology allows surgeons to perform key steps of the procedure with unmatched accuracy and repeatability.

With real-time OCT imaging and customizable treatment parameters, the LenSx® System enhances surgical planning and execution, offering tailored outcomes for each patient. It seamlessly integrates into modern operating environments, promoting workflow efficiency and clinical confidence.

Trusted by eye care professionals worldwide, the LenSx® Laser System reflects Alcon’s commitment to innovation in ophthalmic surgery, delivering a higher standard of care and optimized visual results.
